Import events and create incidents in TOAST

There are various ways for creating or loading incidents in TOAST:

See also: Simulations on how to add simulations to an incident.

Receive events automatically via messaging

If a connection to a SeisComP system is configured, new events (and event updates) are received via messaging and incidents can be created automatically. This is the case if the magnitude of the event is larger than incidentMinimumMagnitude and if the depth is shallower than incidentMaximumDepth. See also: Automatic Simulation and Configuration.

Import events from a SeisComP database manually

To import an event from a SeisComP database and create an incident, use Menu ‣ File ‣ Import ‣ From SeisComP or press F4. Load events by choosing appropriate time span settings and clicking the refresh button. Filter the list using the funnel icon. Double click an event to create an incident which then is displayed in TOAST.

../_images/import_event.png

Import an event from a SeisComP database

To trigger simulations for the new incident, press CTRL+N. See also Start simulations for events imported from database.

Create artificial incidents

Incidents can also be created manually, for example for testing or in case a specific earthquake isn’t available in the connected SeisComP database. In case of manual creation, there exists no event associated with the incident.

Click the middle mouse button or use the context menu in the Map perspective. Adapt the properties of the incident in the dialog and click Ok. Note that some properties have an explaining tooltip when hovering over the input field. The new incident appears on the map and in the Database panel.

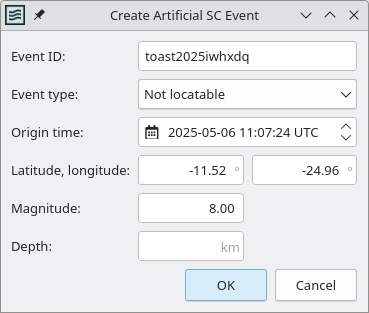

../_images/artificial_incident.png

Artificial incident dialog

Incident properties like latitude or magnitude can be modified after incident creation. To do so, select an incident and then: Menu ‣ Extras ‣ Edit incident source… or use the context menu (mouse right-click) in the database panel in incident mode.

For more information on Severity, see: Severity concept.

Load incidents from TOAST database

In order to load incidents from the TOAST database, click the settings-icon in the Database panel, specify a time span either by dates or by Last days and hit the corresponding refresh button.

Using: scconfig ‣ Modules ‣ gempa ‣ toast ‣ toast ‣ tsunami ‣ database you can set tsunami.database.loadLastDays to automatically load incidents after starting TOAST.

Import displacement amplitudes and create observed displacements

There are several ways to create or import displacements in TOAST:

Note

Technically, an amplitude is a SeisComP object, while a displacement is a TOAST-specific object. The automatic amplitudes (received by messaging) and those imported from an XML file are converted to displacements and are referenced in the displacement components, analogous to event and incident. Required amplitude attributes are type (‘Gd’), amplitude value and waveformID. The public IDs of the amplitudes can be looked up in the Displacements perspective. A manually entered displacement does not reference an amplitude. The priority of the displacements is: manual, automatic, imported (manual displacements overwrite automatic and imported etc.).

For more information on Displacements functionality see: Displacements perspective.

Receive displacements via messaging

If a connection to a SeisComP system is configured, displacements are automatically created and updated upon receiving displacement amplitudes from GNSS observations.

Note

Automatically created displacements overwrite imported displacements, but never manually created ones.

Import displacement amplitudes from an XML file

GNSS displacements can be imported from a file in XML format containing displacement amplitudes via File ‣ Import ‣ Displacements amplitudes….

This is an example for a file containing such amplitudes. It was created by the gdisp plugin:

<?xml version="1.0" encoding="UTF-8"?>
<seiscomp xmlns="http://geofon.gfz-potsdam.de/ns/seiscomp3-schema/0.12" version="0.12">
  <EventParameters>
    <amplitude publicID="Amplitude/20220125102622.883042.902">
      <type>Gd</type>
      <amplitude>
        <value>-0.3</value>
        <uncertainty>0.01</uncertainty>
      </amplitude>
      <timeWindow>
        <reference>2021-11-30T13:50:10.0000Z</reference>
        <begin>-149.119267</begin>
        <end>264.2601815</end>
      </timeWindow>
      <waveformID networkCode="ID" stationCode="CTHN" channelCode="LYE"/>
      <creationInfo>
        <author>gdisp</author>
        <creationTime>2022-01-25T10:26:22.882452Z</creationTime>
      </creationInfo>
      <comment>
        <text>test123</text>
        <id>eventID</id>
      </comment>
    </amplitude>
    <amplitude publicID="Amplitude/20220125102622.884289.904">
      <type>Gd</type>
      <amplitude>
        <value>0.2</value>
        <uncertainty>0.01</uncertainty>
      </amplitude>
      <timeWindow>
        <reference>2021-11-30T13:50:10.0000Z</reference>
        <begin>-149.119267</begin>
        <end>264.2601815</end>
      </timeWindow>
      <waveformID networkCode="ID" stationCode="CTHN" channelCode="LYN"/>
      <creationInfo>
        <author>gdisp</author>
        <creationTime>2022-01-25T10:26:22.883997Z</creationTime>
      </creationInfo>
      <comment>
        <text>test123</text>
        <id>eventID</id>
      </comment>
    </amplitude>
    <amplitude publicID="Amplitude/20220125102622.884883.906">
      <type>Gd</type>
      <amplitude>
        <value>-0.1</value>
        <uncertainty>0.02</uncertainty>
      </amplitude>
      <timeWindow>
        <reference>2021-11-30T13:50:10.0000Z</reference>
        <begin>-149.119267</begin>
        <end>264.2601815</end>
      </timeWindow>
      <waveformID networkCode="ID" stationCode="CTHN" channelCode="LYZ"/>
      <creationInfo>
        <author>gdisp</author>
        <creationTime>2022-01-25T10:26:22.884661Z</creationTime>
      </creationInfo>
      <comment>
        <text>test123</text>
        <id>eventID</id>
      </comment>
    </amplitude>
  </EventParameters>
</seiscomp>

Upon import, the amplitudes are converted to displacements for the currently active TOAST incident.

Note

Imported displacements can be overwritten by manually or automatically created displacements.

Create observed displacements manually

It is possible to enter or override the observed displacement for a GNSS station manually. This is useful if there are no automatic displacements available or for training purposes. To do so, right-click on a GNSS station in Map perspective or in Displacements perspective and select: Observed displacement ‣ Set manually…. Note that it is not necessary to enter all components. The horizontal contribution to the displacement residual is computed if both East and North components are present and the vertical contribution if the Up component is present.

../_images/gnss_custom_dialog.png

Manual displacement input dialog

A user icon on the left side of the displacement columns in Displacements perspective indicates manually entered values.

Note

Manually displacements can never be overwritten, neither by automatically received or imported ones.

Note

If all components are not set in the manual setting dialog, the displacement will be removed.

Export displacements

Observed displacements can be saved to an XML file via File ‣ Save ‣ Observed displacements as….

Note that they are stored as displacement objects and not amplitudes, and thus can not be re-imported in TOAST.

Receiving updates from the SeisComP system

As long as TOAST is connected to a SeisComP messaging system, incidents and displacements are updated automatically.
