autothor¶

Automated seismic event location by waveform coherence analysis.

Description¶

autothor automatically detects and locates earthquakes and other seismic sources by backprojection of seismic waveforms along travel-time curves onto a 3D source grid and subsequent waveform stacking.

Workflow¶

autothor scans a 3-D grid of candidate source locations continuously in fixed-length time windows, processing each node in the following order:

Grid search: the search volume is traversed node by node, first on the coarse thor.search grid and then on the fine thor.grid.
Travel-time calculation: theoretical P- and S-wave travel times from the node to every station are computed from the configured tables (thor.ttt.interface, thor.ttt.model) and cached.
Waveform windowing: the travel times define the waveform window read at each station.
Characteristic-function generation: each window is turned into a characteristic function by the configured stacking method - an STA/LTA ratio, a deep-learning confidence curve, or an AIC onset function.
Stacking and coherence: the characteristic functions are aligned on the predicted travel times and stacked across the network; the P and S coherence are combined into a single value per node and time step.
Origin selection: grid nodes and time steps whose coherence exceeds a threshold are declared as origins.

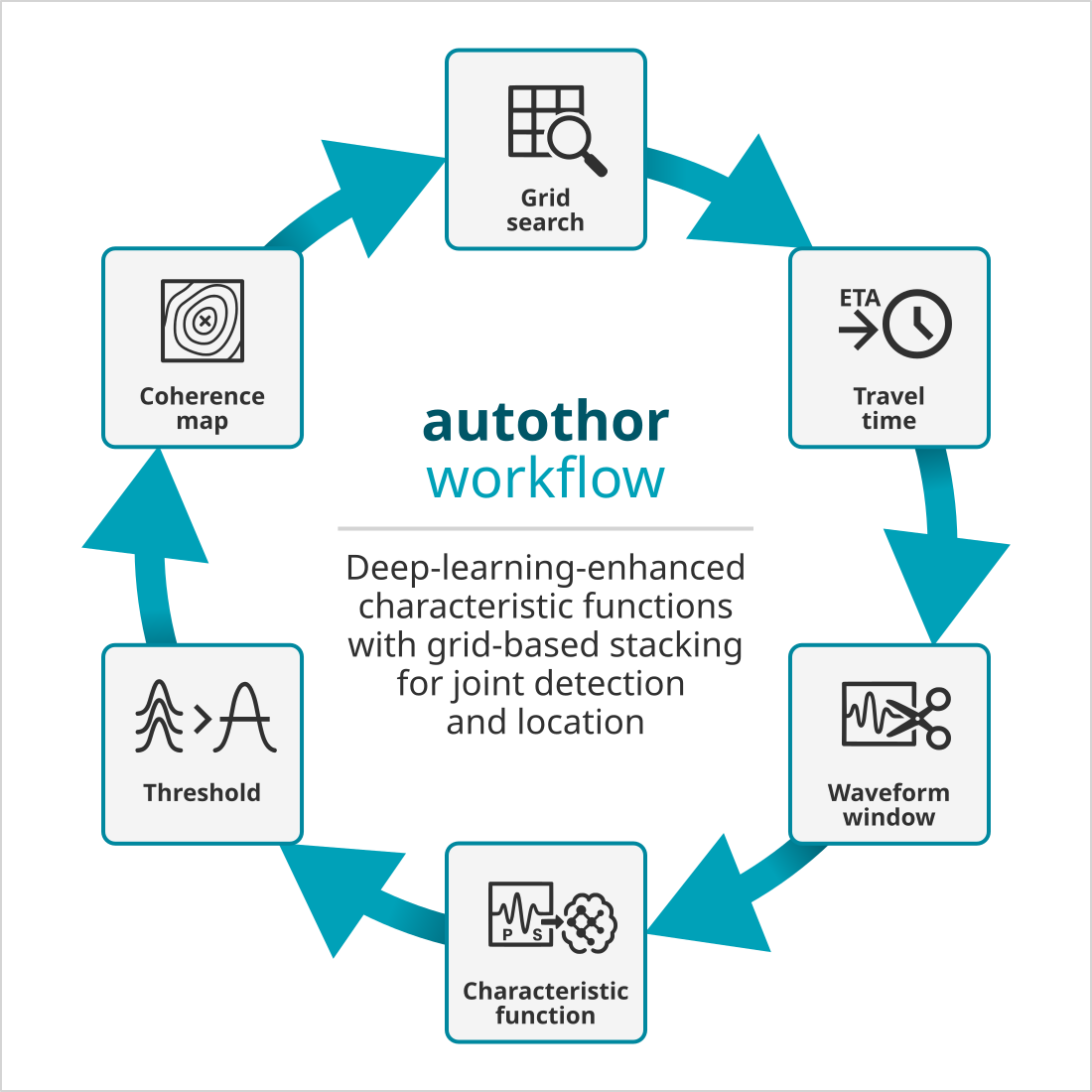

../_images/autothor_workflow.png — The *autothor* workflow. The stacking method determines how the characteristic function is formed.¶

Stacking methods¶

autothor forms, for every station, a characteristic function (CF) from the preprocessed waveform and migrates (stacks) these CFs over the search grid. The algorithm that turns a waveform into a CF and that picks the contributing phases is selected by thor.stacking and is pluggable: each method is registered by a plugin and configured under thor.stacking.<method>.

The method named by thor.stacking must be available, either built in or loaded as a plugin via plugins. Configuration keys under one method’s group are ignored by the others.

Method	Plugin	CF / picker	Typical use
`default`	(built in)	STA/LTA	General-purpose detection
`aic`	`thoraic`	Maeda AIC P picker plus an SNR / component-energy S search	Sparse or single-component networks; sharp onset picking
`dl`	`thordl`	Deep-learning phase confidence	Where a trained model is available

Each method is documented below.

Default (STA/LTA) stacking¶

The default method is built in (no plugin required) and forms each characteristic function from a classic STA/LTA ratio - the ratio of a short-term to a long-term average of the signal envelope. A separate STA/LTA is computed for P and for S, so the P and S window lengths are configured independently: thor.stacking.default.staP / thor.stacking.default.ltaP and thor.stacking.default.staS / thor.stacking.default.ltaS (all in seconds).

Select it (it is also the default if thor.stacking is unset):

thor.stacking = default

Trace gating and scaling¶

Before stacking, each STA/LTA trace can be gated and scaled:

thor.stacking.default.minimumSTALTA - the minimum acceptable STA/LTA value per phase.
thor.stacking.default.scaleBySTALTA - rather than discarding a trace whose peak STA/LTA is below the minimum, scale it down (by maxAmp / minimumSTALTA) so it contributes less to the stack.
thor.stacking.default.scaleByAmplitude - scale each trace by the maximum STA/LTA across its component group (vertical or horizontal), which down-weights more distant traces. This is the STA/LTA counterpart of the deep-learning thor.stacking.dl.scaleByConfidence and is off by default.

Horizontal S correction¶

thor.stacking.default.horizontalSTALTACorrection corrects the horizontal characteristic function with respect to the vertical, suppressing the strong P onset that leaks onto the horizontals so that the S onset stands out. It is enabled by default and is the main mechanism by which the default method separates S from P on three-component data.

Performance and diagnostics¶

thor.stacking.default.threads sets the number of threads for the stacking grid (0 means half the reported CPU cores; a positive value is used exactly). thor.stacking.default.dump writes the processed traces for each time step for inspection.

AIC stacking¶

The aic method is provided by the thoraic plugin. It detects the P onset on the vertical component with a Maeda Akaike Information Criterion (AIC) picker, then searches the horizontal components for an S onset, gated by an SNR threshold and a component-energy discriminant. The resulting onsets feed the stack and become the picks of any declared origin.

Enable it by loading the plugin and selecting the method:

plugins = ${plugins}, thoraic

thor.stacking = aic

All parameters are read under thor.stacking.aic.*; the full list with types and defaults is given in the configuration reference of the plugin. The following sections describe the parameter groups and the reasoning behind them.

P onset¶

The P onset is found as the global minimum of the Maeda AIC function on the vertical, restricted to the interior of the window (thor.stacking.aic.aicMargin samples are excluded at each end where the AIC value is unstable). The onset is accepted only if its signal-to-noise ratio reaches thor.stacking.aic.P.minSNR; otherwise the vertical is zeroed and given zero weight, so it does not contribute to the stack.

S onset¶

Anchored at the P onset, a rolling window scans the horizontals for S between thor.stacking.aic.S.signalBegin and thor.stacking.aic.S.signalEnd (offsets in seconds from P). The window grows in steps of thor.stacking.aic.S.step; a candidate must reach thor.stacking.aic.S.minSNR and persist over thor.stacking.aic.S.minCnt consecutive qualifying windows before S is confirmed, which suppresses single-sample spikes. The best candidate is finally accepted only if its score (SNR weighted by the component-energy discriminant) reaches thor.stacking.aic.S.minScore.

Widen thor.stacking.aic.S.signalEnd for larger S-P times, i.e. for networks spanning greater epicentral distances.

Component-energy discriminant¶

To help separate a genuine S arrival from residual P energy on the horizontals, a cheap per-component energy test is applied. Over a short window (thor.stacking.aic.P.energyWindow around P, thor.stacking.aic.S.energyWindow at the candidate S) the sum of squares on each component forms a unit energy vector; the dissimilarity between the P and candidate-S vectors is used as a weight in [0, 1]. Energy distributed like the P arrival lowers the weight (probably still P); a different distribution raises it (more likely genuine S).

Pick confidence filter¶

Removes weak picks from the stack and the solution.

A pick whose AIC characteristic-function peak (“confidence”) is below the configured threshold is given zero weight and, together with thor.removeZeroWeightArrivals, dropped from both the stack and the origin. The thresholds are set per phase: thor.stacking.aic.minimumPickConfidence.P and thor.stacking.aic.minimumPickConfidence.S. A value of 0 disables the filter for that phase.

Because P and S confidences live on very different scales (P peaks are large and well separated from noise; S peaks are small), the two thresholds are normally asymmetric - a meaningful P gate, and a low S value that only removes the weakest S without discarding the phase.

Background¶

The confidence filter is the main quality lever for rejecting fake origins that would otherwise be assembled from many individually weak picks: raising thor.stacking.aic.minimumPickConfidence.P starves such origins of contributing stations so they fall below thor.minimumStations and are never declared, while real events - which carry several high-confidence P picks - are unaffected. The appropriate values are best read off the confidence distributions of a representative playback (compare the P and S picks of confirmed events).

Single-component and cloned-horizontal networks¶

On networks without true horizontal components, the horizontals are usually synthesised from the vertical (thor.cloneHorizontalsFromVertical). The S search then operates on cloned data, which carries no independent shear information, so S picks are intrinsically weak. Two toggles control how S is treated in this case:

thor.stacking.aic.skipSWhenCloned - skip the S search on stations whose horizontals are cloned. Geophysically this is the “correct” choice, but on an all-vertical network the (cloned) S picks may be needed to form solutions at all; set it false to keep them.
thor.stacking.aic.skipSWhenNoP - skip the S search where no P onset (hence no anchor for the S window) was found.

Warning

On a single-component network, leave thor.stacking.aic.minimumPickConfidence.S low. Real S confidences there are small and overlap the noise, so a high S gate discards almost all S picks. Use P as the quality gate and treat S as a supplement.

Scaling¶

Before stacking, each CF may be amplitude-scaled. With thor.stacking.aic.scaling.enable the scale is adaptive (1/max, guarded by thor.stacking.aic.scaling.minDenom and capped by thor.stacking.aic.scaling.max so one loud station cannot dominate); otherwise a constant thor.stacking.aic.scaling.fixed is used. An optional, disabled-by-default S-P-distance down-weighting is available under thor.stacking.aic.dtScaling.enable.

Example configuration (AIC)¶

plugins = ${plugins}, thoraic

thor {
    region = 50x50+10.1234-20.5678
    depths = 0:20
    grid   = 200x200x80
    search = 100x100x40

    filter  = "ITAPER(5)>>BW(4,0.5,8)"
    filter2 = "ITAPER(5)>>BW(4,0.5,8)"

    cloneHorizontalsFromVertical = true
    sampleRate         = 100
    signal             = 30.02
    overlap            = 0.5

    minimumCorrelation = 0.5
    minimumStations    = 6
    pickFromComponent  = true
    removeZeroWeightArrivals = true

    ttt {
        interface = LOCSAT
        model     = iasp91_scanloc
    }

    stacking = aic
    stacking {
        aic {
            aicMargin = 10

            P.minSNR      = 3
            P.energyWindow = 0.4

            S.minSNR      = 2.5
            S.minScore    = 2.0
            S.step        = 0.3
            S.minCnt      = 5
            S.signalBegin = 1.5
            S.signalEnd   = 20
            S.energyWindow = 0.6

            minimumPickConfidence.P = 100
            minimumPickConfidence.S = 10

            skipSWhenCloned = false
            skipSWhenNoP    = false
        }
    }
}

Deep-learning stacking¶

The dl method is provided by the thordl plugin. Instead of a hand-built characteristic function it runs a trained deep-learning model (e.g. a PhaseNet-type network from SeisBench) over each station’s three-component waveform to produce continuous P and S confidence curves, which are then fed into the same stacking machinery as the other methods.

Enable it by loading the plugin and selecting the method:

plugins = ${plugins}, thordl

thor.stacking = dl

All parameters are read under thor.stacking.dl.*; the full list with types and defaults is given in the configuration reference of the plugin.

Model selection¶

The model is located by a search path and a weights name: thor.stacking.dl.dlmodelsPath is the directory searched for models, and thor.stacking.dl.modelWeights names the weights to load (e.g. pnv_15s-et-0). A model providing both P and S confidence curves is required.

Confidence post-processing¶

The raw confidence curves can be conditioned before stacking:

thor.stacking.dl.scaleByConfidence - scale each curve by the maximum confidence across all stations for that phase (max(confidence) / globalMaxConfidence), which down-weights more distant traces. Applied separately to P and S. Deactivating this (false) is recommended.
thor.stacking.dl.taperConfidence - apply a cosine taper to the ends of each curve, with the tapered fractions set by thor.stacking.dl.taperFront and thor.stacking.dl.taperBack (each between 0 and 0.5).
thor.stacking.dl.minConfidence.P and thor.stacking.dl.minConfidence.S - lower confidence bounds used when scaling the model output, per phase. If unset, the model’s recommended value is used where present, otherwise 0.2.
thor.stacking.dl.confOverlap - overlap of successive confidence segments, as a fraction (0 to 1) of the model input length.

Performance and diagnostics¶

thor.stacking.dl.threads sets the number of worker threads (0 uses all available cores). thor.stacking.dl.dump writes intermediate data for inspection.

Example configuration (DL)¶

plugins = ${plugins}, thordl

thor {
    # ... grid / region / filter / ttt as for any method ...

    stacking = dl
    stacking {
        dl {
            dlmodelsPath = /home/data/dlmodels/dlmodels-pick/
            modelWeights = pnv_15s-et-0

            scaleByConfidence = false
            taperConfidence   = true
            taperFront        = 0.0
            taperBack         = 0.0

            minConfidence.P = 0.2
            minConfidence.S = 0.2

            confOverlap = 0.067

            threads = 0
        }
    }
}

Note

The dl method needs a trained model present under thor.stacking.dl.dlmodelsPath. Where no suitable model is available, the AIC method is a lightweight alternative that needs no model.

GPU acceleration¶

The stacking grid can be migrated on the GPU instead of the CPU, independent of which stacking method forms the characteristic functions. Enable it with thor.stacking.gpu.enable. thor.stacking.gpu.numWorkers selects how many GPUs to use (0 means all available NVIDIA GPUs, falling back to CPU processing if none are found), and thor.stacking.gpu.precision chooses single- or double-precision arithmetic.

Examples¶

Because the grid search resolves source depth directly, the located origins can be inspected in three dimensions (Figure: located hypocenters). Depth structure that is hard to see in single-station picking - for example separate shallow and deeper clusters - is recovered from the coherence of the network stack.

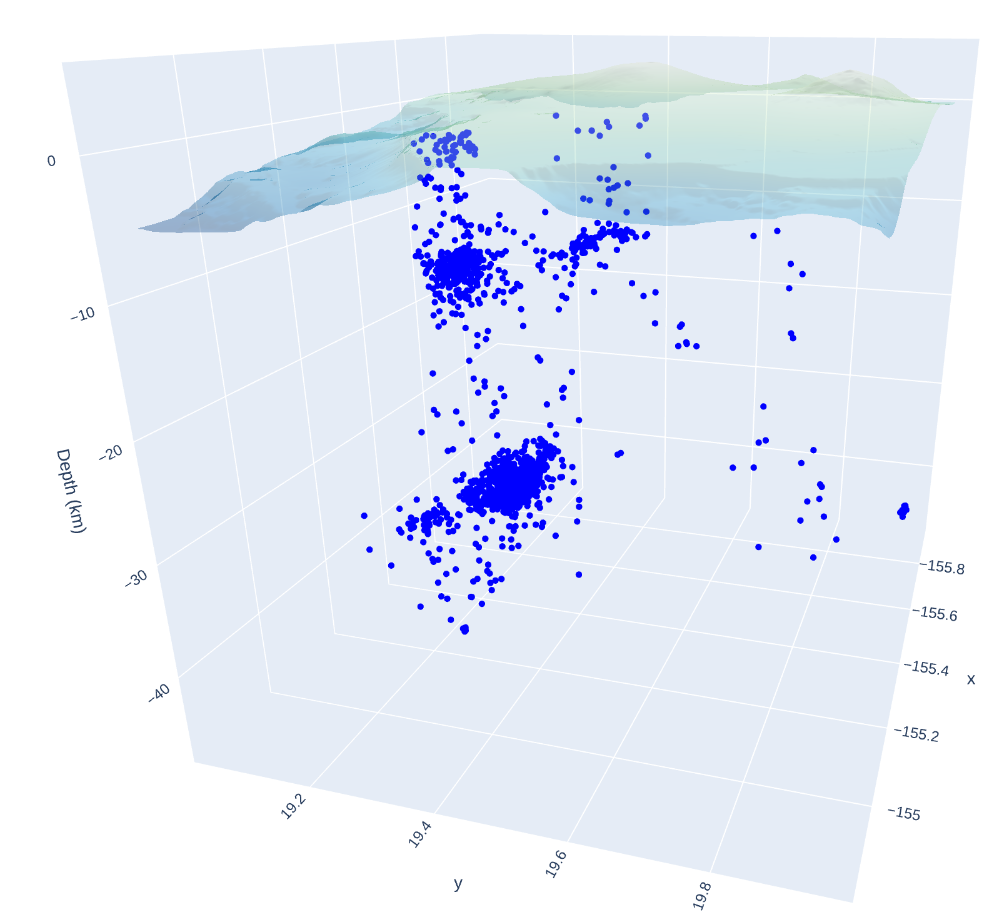

../_images/autothor_example_hypocenters.png — Example *autothor* result: located hypocenters shown in three dimensions (longitude, latitude and depth) beneath the topography. The catalogue resolves distinct depth populations rather than a single layer.¶

Module Configuration¶

etc/defaults/global.cfg
etc/defaults/autothor.cfg
etc/global.cfg
etc/autothor.cfg
~/.seiscomp/global.cfg
~/.seiscomp/autothor.cfg

autothor inherits global options.

Note

Modules/plugins may require a license file. The default path to license files is @DATADIR@/licenses/ which can be overridden by global configuration of the parameter gempa.licensePath. Example:

gempa.licensePath = @CONFIGDIR@/licenses

thor.region¶

Type: string

The processing region which is interpolated in the grid. The format is [lon_width_in_km]x[lat_width_in_km]+/-[lon_in_degrees]+/-[lat_in_degrees].

thor.rotation¶

Default: 0

Unit: deg

Type: double

The counter clockwise rotation angle of the region around the min_lat/min_lon coordinate.

thor.depths¶

Unit: km:km

Type: string

The depth range to search. The format is [min_depth_in_km]:[max_depth_in_km].

thor.grid¶

Default: 100x100x10

Type: string

The processing grid in [nodes_x]x[nodes_y]x[nodes_z]. The grid does not include the corresponding maximum values of each dimension. The actual cell size in one dimension is length / nodes.

thor.search¶

Default: 10x10x2

Type: string

The initial search grid. This grid is a coarser grid than the final grid. It is used to speed up computation by not evaluation the full space. After finding the maximum in this inital search grid, the cell and its direct neighbors are evaluated with the final grid cellspacing.

thor.stations¶

Type: list:string

A list of stations to be used. The location code and channel code is read from the bindings detecLocid and detecStream. If the stations list is empty, then bindings are evaluated and all stations are being used which are enabled for thor.

thor.inventoryReferenceTime¶

Type: time

The metadata reference time for fetching station configurations from inventory.

thor.filter¶

Default: RMHP(1)>>DIFF

Type: string

A processing filter which is applied to each channel before stacking takes place.

thor.filter2¶

Type: string

A secondary processing filter which is applied to each channel before stacking takes place. This secondary filter will be applied to the horizontal components if provided. Otherwise the primary filter will be used.

thor.cloneHorizontalsFromVertical¶

Default: false

Type: boolean

If a single component station should be used, then this parameter decided whether the single vertical component will be cloned to the missing two horizontal components (true) or if the application will be terminated due to missing metadata (false).

thor.sampleRate¶

Default: 100

Unit: sps

Type: double

The common sample rate to be used. Data which is not sampled with another rate will be resampled to match this value.

thor.signal¶

Default: 5

Unit: s

Type: double

The length of the signal window.

thor.maxWindow¶

Default: 0

Unit: s

Type: double

The effective data window is computed as signal plus maximum expected time shift. In order to limit this effective data window this value can be used. If larger than zero, then it will be taken as the maximum length of the data window. For samples which are required during stacking but are not available in the data window, zeros will be used. Note that it can’t be less than signal.

thor.overlap¶

Default: 0.5

Type: double

The overlap of the signal window when forwarding to another time window. The effective stepping length is signal * (1-overlap).

thor.dump¶

Default: false

Type: boolean

Dump each solution as graphical PNG image and Surfer grid files in local directory. The files are named are controlled by "thor.useOriginID".

thor.useOriginID¶

Default: false

Type: boolean

Use the public ID of the related origin for creating the names of the dumped solution files.

True: "grid_[publicID].[png|grd]"

Default: "grid_[step].[png|grd]"

thor.minimumCorrelation¶

Default: 0.25

Type: double

The minimum correlation value to accept a solution. This value should be between 0 and 1.

thor.minimumStations¶

Default: 0

Type: integer

The minimum number of stations which must contribute to a solution.

thor.stacking¶

Default: default

Type: string

The stacking processor to be applied. If no additional plugin has been loaded, then only the "default" processor is available.

thor.cacheDirectory¶

Default: @CONFIGDIR@/cache/thor

Type: directory

The directory where the travel time grids of the stations are saved.

thor.pickFromComponent¶

Default: false

Type: boolean

Whether to set the pick time from the maximum index of the stack function (false) or from the maximum of each contributing component (true).

thor.removeZeroWeightArrivals¶

Default: false

Type: boolean

Remove arrivals having a weight of 0.

thor.pickUncertainty¶

Default: false

Type: boolean

Whether to set the pick time uncertainty to the used time window or not.

Note

thor.ttt.* Configuration options for the travel time computation.

thor.ttt.interface¶

Default: LOCSAT

Type: string

The travel time table interface used to compute travel times from each grid node to a station.

thor.ttt.model¶

Default: iasp91

Type: string

Values: iasp91,tab

The travel time table model used to compute travel times from each grid node to a station.

thor.stacking.gpu.enable¶

Default: false

Type: boolean

Whether to run the stacking algorithm on GPU.

thor.stacking.gpu.numWorkers¶

Default: 0

Type: integer

The number of workers to use when computing the stacking grid. 0 means all available NVIDIA GPUs in the system. Falls back to CPU processing if set to 0 and no compatible GPUs are found.

thor.stacking.gpu.precision¶

Default: double

Type: string

Values: single,double

Whether to use single or double precision arithmetic in GPU processing.

Note

thor.stacking.default.* Configuration options for the default stacking algorithm.

thor.stacking.default.staP¶

Default: 0

Unit: s

Type: double

The length of the P short-term window in seconds for STALTA.

thor.stacking.default.ltaP¶

Default: 0

Unit: s

Type: double

The length of the P long-term window in seconds for STALTA.

thor.stacking.default.staS¶

Default: 0

Unit: s

Type: double

The length of the S short-term window in seconds for STALTA.

thor.stacking.default.ltaS¶

Default: 0

Unit: s

Type: double

The length of the S long-term window in seconds for STALTA.

thor.stacking.default.minimumSTALTA¶

Default: 0

Type: double

The minimum STALTA value for each phase.

thor.stacking.default.scaleBySTALTA¶

Default: true

Type: boolean

Whether to scale traces by STALTA or discard them. If enabled, then each traces will be scaled down if its maximum STALTA value is below the minimum configured STALTA value. The scaling factor will be maxAmp / minimumSTALTA.

thor.stacking.default.scaleByAmplitude¶

Default: false

Type: boolean

Whether to scale by the maximum amplitude of all components among the vertical or horizontal group. If enabled, then the maximum value of all vertical STALTA traces is used to scale each vertical STALTA function by maxSTALTA(trace) / globalMaxSTALTA. The same applies for the horizontal components. This will downweight traces in farther distances.

thor.stacking.default.horizontalSTALTACorrection¶

Default: true

Type: boolean

If enabled, then the characteristic function formed by the horizontals will be corrected w.r.t to the characteristic function of the vertical component to suppress the strong P onsets on the horizontals and to bring out the characteristic function of the S phase.

thor.stacking.default.threads¶

Default: 0

Type: integer

The number of threads to use when computing the stacking grid. 0 means half the number of reported CPU cores. A value greater than 0 will use exactly this number of threads.

thor.stacking.default.dump¶

Default: false

Type: boolean

Whether to dump the processed traces for each time step or not.

Bindings Parameters¶

thorEnable¶

Default: false

Type: boolean

Enables/disables processing with THOR.

Command-Line Options¶

Generic¶

-h, --help¶: Show help message.

-V, --version¶: Show version information.

--config-file file¶: The alternative module configuration file. When this option is used, the module configuration is only read from the given file and no other configuration stage is considered. Therefore, all configuration including the definition of plugins must be contained in that file or given along with other command-line options such as --plugins.

--plugins arg¶: Load given plugins.

-D, --daemon¶: Run as daemon. This means the application will fork itself and doesn’t need to be started with &.

--auto-shutdown arg¶: Enable/disable self-shutdown because a master module shutdown. This only works when messaging is enabled and the master module sends a shutdown message (enabled with --start-stop-msg for the master module).

--shutdown-master-module arg¶: Set the name of the master-module used for auto-shutdown. This is the application name of the module actually started. If symlinks are used, then it is the name of the symlinked application.

--shutdown-master-username arg¶: Set the name of the master-username of the messaging used for auto-shutdown. If "shutdown-master-module" is given as well, this parameter is ignored.

Verbosity¶

--verbosity arg¶: Verbosity level [0..4]. 0:quiet, 1:error, 2:warning, 3:info, 4:debug.

-v, --v¶: Increase verbosity level (may be repeated, e.g., -vv).

-q, --quiet¶: Quiet mode: no logging output.

--component arg¶: Limit the logging to a certain component. This option can be given more than once.

-s, --syslog¶: Use syslog logging backend. The output usually goes to /var/lib/messages.

-l, --lockfile arg¶: Path to lock file.

--console arg¶: Send log output to stdout.

--debug¶: Execute in debug mode. Equivalent to --verbosity=4 --console=1 .

--log-file arg¶: Use alternative log file.

Messaging¶

-u, --user arg¶: Overrides configuration parameter connection.username.

-H, --host arg¶: Overrides configuration parameter connection.server.

-t, --timeout arg¶: Overrides configuration parameter connection.timeout.

-g, --primary-group arg¶: Overrides configuration parameter connection.primaryGroup.

-S, --subscribe-group arg¶: A group to subscribe to. This option can be given more than once.

--content-type arg¶

Overrides configuration parameter connection.contentType.

Default: binary

--start-stop-msg arg¶

Default: 0

Set sending of a start and a stop message.

Database¶

--db-driver-list¶: List all supported database drivers.

-d, --database arg¶: The database connection string, format: service://user:pwd@host/database. "service" is the name of the database driver which can be queried with "--db-driver-list".

--config-module arg¶: The config module to use.

--inventory-db arg¶: Load the inventory from the given database or file, format: [service://]location .

Records¶

--record-driver-list¶: List all supported record stream drivers.

-I, --record-url arg¶: The RecordStream source URL. Format: [service://]location[#type]. "service" is the name of the RecordStream driver which can be queried with "--record-driver-list". If "service" is not given, "file://" is used and simply the name of a miniSEED file can be given.

--record-file arg¶: Specify a file as record source.

--record-type arg¶: Specify a type for the records being read.

Mode¶

--offline¶: Do not connect to messaging

--ep arg¶: Implies offline and outputs all results as a single event parameters XML document to stdout

Offline¶

-E, --eventID arg¶: Define an event ID to be relocated. If both an origin and event IDis given, then the origin ID has precedence.

-O, --originID arg¶: Define an origin ID to be relocated. If both an origin and event IDis given, then the origin ID has precedence.

autothor¶

Description¶

Workflow¶

Stacking methods¶

Default (STA/LTA) stacking¶

Trace gating and scaling¶

Horizontal S correction¶

Performance and diagnostics¶

AIC stacking¶

P onset¶

S onset¶

Component-energy discriminant¶

Pick confidence filter¶

Background¶

Single-component and cloned-horizontal networks¶

Scaling¶

Example configuration (AIC)¶

Deep-learning stacking¶

Model selection¶

Confidence post-processing¶

Performance and diagnostics¶

Example configuration (DL)¶

GPU acceleration¶

Examples¶

Module Configuration¶

Bindings Parameters¶

Command-Line Options¶

Generic¶

Verbosity¶

Messaging¶

Database¶

Records¶

Mode¶

Offline¶

Table of Contents

Previous topic

Next topic

This Page
