LOCSAT

Locator in SeisComP for computing source time and hypocenter coordinates from phase picks.

Description

LOCSAT is a locator with a travel-time interface in SeisComP for computing source time and hypocenter coordinates from phase picks considering:

  • Pick time and pick uncertainty,

  • Backazimuth and backazimuth uncertainty,

  • Slowness and slowness uncertainty,

  • Phase-specfic travel-time tables.

The LOCSAT locator interface implements a wrapper for the LocSAT locator by Bratt and Nagy [51] (according to the README file shipped with the LocSAT distribution) referred to as LOCSAT in SeisComP. The LOCSAT travel-time interface provides travel time for specfic phases, epicentral distance, source depth and station elevation.

Locator Interface

LOCSAT provides the hypocenter parameters through the locator interface. Instead of specifying an Earth model, LOCSAT queries travel times via the LOCSAT travel-time interface which makes use of pre-defined travel-time tables. Note the limitations.

Use “LOCSAT” as a value for the locator interface along with a profile when configurable, e.g., by scolv, scautoloc or screloc.

Travel-Time Interface

LOCSAT provides an interface for computing travel times based on station and source coordinates with non-negative source depths. Note the limitations.

The travel times are used for predicting phase arrival times in various applications such as scautoloc or scolv. The times are visualized, e.g., as blue marks in the scolv picker window.

Use “LOCSAT” as a value for the travel-time interface when configurable, e.g., by FixedHypocenter or StdLoc.

Travel-Time Tables

SeisComP ships with two sets of predefined travel-time tables which are made available as the profiles tab and iasp91. The default profile is iasp91.

LOCSAT travel time tables and optional profile files are located as plain ascii files in @DATADIR@/locsat/tables/. All profile-related files have file names starting with the profile name. The specific type is added by a suffix. Types include

Limitations

  1. The source depth is limited to non-negative values up to 800 km.

  2. Only phases for which a travel-time table exists can be considered.

  3. LOCSAT considers default travel-time tables for phases which are hard-coded. Currently, the phases are:

    • seismic body waves: P, Pb, Pg, Pn, pP, PP, PcP, PKiKP, PKIKP, PKKP, PKP, PKPab, PKPbc, PKPdf, pPKPab, pPKPbc, pPKPdf,

      S, Sb, Sg, Sn, sP, sS, SS, ScP, ScS, SKKP, SKP, SKPdf, SKS, SKSac, SKSdf, sPKPab, sPKPbc, sPKPdf,

      where P and S are the frist-arrival direct P and S phases, respectively, at all distances no matter the take-off angle at the source.

    • seismic surface waves: LQ, LR, Lg, Rg.

    • infrasound: Is, It, Iw.

    Hint

    A custom list of phases can be provided replacing the default phases. Read section Custom phase list for the details.

  4. The maximum number of distance and depth intervals per table file is currently 210 and 50, respectively.

    Warning

    • Travel-time tables with larger numbers of distance or depth samples are reported along with command-line error output (stderr). The travel-time tables should therefore be tested, e.g., with scolv before unsupervised application.

    • Travel times at distance and depth samples exceeding the limits are ignored. This may lead to undesired behavior during location.

    • Phase picks observed outside the distance and depth ranges defined by travel-time tables may lead to undesired behavior during location.

  5. The considered minimum depth is 0 km. Elevations and depths above datum are not natively considered. The effects of station elevation can be empirically corrected for.

Travel-time tables

The tables provide the travel times for an Earth model (profile) and particular seismic phases at given depth and epicentral distance in one file per profile and seismic phase. The file format can be read from @DATADIR@/locsat/tables/iasp91.P which ships with SeisComP by default.

You may easily add your own tables for any available Earth model and seismic phase by adopting existing ones in new files which are added by configuration to your SeisComP modules.

Custom phase list

A custom list of phases can be provided for a LOCSAT profile replacing the default phases. The file lists the supported phase names. Use one phase name per line. Example:

P
S
PmP
Pg
Sg

For a given profile, the name of the file consists of the profile name and the suffix ph like [profile].ph. E.g., for adding phase definitions to the iasp91 profile, the file $SEISCOMP_ROOT/share/locsat/tables/iasp91.ph can be created.

Station elevations

LOCSAT does not natively support corrections of travel times for station elevations. At least checking the code:

sta_cor[i]  = 0.0;    /* FIX !!!!!!*/

However, the SeisComP wrapper adds this feature. It allows to define a .stacor file which defines emperic corrections of observed travel times. The corrections are provided in seconds and subtracted (not added) from the observation time to be compatible with the NonLinLoc [61] station correction definitions.

Each LOCSAT profile (travel time table) can have one associated station correction file. For a given profile, the name of the file is [profile].stacor. E.g., for adding station corrections to the iasp91 profile, the file $SEISCOMP_ROOT/share/locsat/tables/iasp91.stacor can be created.

Station correction files take the form (example):

# LOCDELAY code phase numReadings delay
LOCDELAY GE.MORC P 1 0.15
LOCDELAY IU.ANMO.00 P 1 0.36
LOCDELAY IU.KONO.20 P 1 -0.03

with

  • LOCDELAY: Required fixed string.

  • code (string): Stream code (after all alias evaluations) up to sensor location code with network and station code as a minium. Exception: If only a station code is given, then only the station code is checked. This is a fallback for data centers ignoring network codes and should be used exceptionally only.

    Network, station and sensor location codes are separated by ‘.’. If no sensor location is given, an empty code is assumed. Wildcards are not supported.

  • phase (string): Phase type (any of the available travel time tables)

  • numReadings (integer): Number of residuals used to calculate mean residual/delay. Not used by LOCSAT, included for compatibility reasons with NonLinLoc

  • delay (float): Delay in seconds, subtracted from observed time.

Note

  • Station corrections are only considered by the locator, not the travel-time interface. Therefore, they do not find application for locating by FixedHypocenter or for phase association in scautoloc.

  • The example file for station corrections above reflect the format not any empirically derived relationship and the values themselves have no meaning.

Application and Setup

LOCSAT is the default and only locator for scautoloc with iasp91 as the default profile. However, LOCSAT can be used optionally in other modules such as scolv or screloc.

Custom travel-time tables

  1. Generate your travel-time tables from a custom Earth model, depth and distance intervals. Use the same format as the defaults as the iasp91 tables. Tools such as TauP [29] allow the generation.

  2. Optionally add the files for station elevation corrections and phase definitions.

  3. Add your custom travel-time tables along with optional station elevation corrections and the custom phase list to @DATADIR@/locsat/tables/.

  4. Add your available custom LOCSAT travel-time tables in global configuration, e.g., to the list of tables of travel-time interfaces

    ttt.LOCSAT.tables = iasp91, custom

    and to the list of locator profiles

    LOCSAT.profiles = iasp91, custom

    and optionally to locators which make use of LOCSAT tables, e.g., FixedHypocenter.

Application with modules

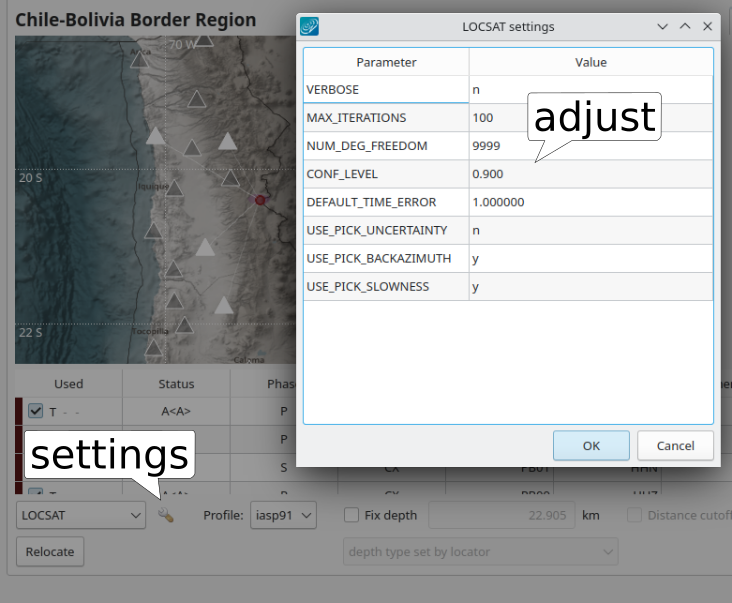

LOCSAT-specific parameters may be configured by global module configuration (LOCSAT.*) and overridden per module:

Specific modules:

Module Configuration

Note

LOCSAT.* Locator parameters: LOCSAT

LOCSAT.profiles

Default: iasp91, tab

Type: list:string

Defines a list of available LOCSAT travel-time tables.

LOCSAT.depthInit

Default: 20.0

Type: double

Unit: km

The initial depth estimate for LOCSAT.

LOCSAT.usePickUncertainties

Default: false

Type: boolean

Whether to use pick time uncertainties for arrivals rather than a fixed time error. If true, the uncertainties are retrieved from each individual phase pick. If they are not defined, the default pick time uncertainty will be used as fallback.

LOCSAT.defaultTimeError

Default: 1.0

Type: double

Unit: s

The default pick time uncertainty assigned to LOCSAT’s arrival attribute if pick uncertainties are not going to be used or if they are absent. A time uncertainty of 0 s may result in errors of the SVD decomposition in LOCSAT.

LOCSAT.usePickBackazimuth

Default: false

Type: boolean

Forward backazimuth measured for phase picks to LOCSAT. Backazimuth measured automaticaly may be inaccurate and disabling their usage in LOCSAT can be controlled with this parameter.

LOCSAT.usePickSlowness

Default: false

Type: boolean

Forward horizontal slowness measured for phase picks to LOCSAT. Slowness values measured automatically may be inaccurate and disabling their usage in LOCSAT can be controlled with this parameter.

LOCSAT.degreesOfFreedom

Default: 9999

Type: int

Number of degrees of freedom.

LOCSAT.confLevel

Default: 0.9

Type: double

Confidence level between 0.5 and 1.0.

LOCSAT.enableConfidenceEllipsoid

Default: false

Type: boolean

Compute the confidence ellipsoid from covariance matrix in 3D.
